San Bernardino sits on deep alluvial fans and old lakebed deposits that contain highly plastic clays. When these clays absorb winter rain or irrigation water, they swell with enough force to crack slabs and lift footings. A focused expansive soil evaluation in San Bernardino is the only way to quantify that risk before pouring concrete. We run free swell oedometer tests and measure swell pressure under controlled confinement. The data tells your structural engineer exactly how much heave to design for. Pairing this with a detailed soil classification helps correlate plasticity index with actual field behavior. Without these numbers, you are guessing at the slab thickness and reinforcement needed.
A single swelling clay layer near the surface can exert upward forces exceeding 4,000 psf — enough to lift a concrete slab several inches.
Approach and scope
A recent warehouse project near the I-10 corridor showed why standard soil reports are not enough. The preliminary boring logged clay but did not test swell potential. Our team took undisturbed block samples from the foundation zone and ran three-cycle swell tests per ASTM D4546. Results showed a swell pressure of 4,200 psf at natural moisture content. That number changed the foundation design from a stiffened slab to a post-tensioned system. For residential projects in the older parts of town, we also recommend a California Bearing Ratio test on the subgrade to check how the swollen clay will behave under pavement loads. Our lab correlates Atterberg limits with suction data to predict seasonal volume changes.

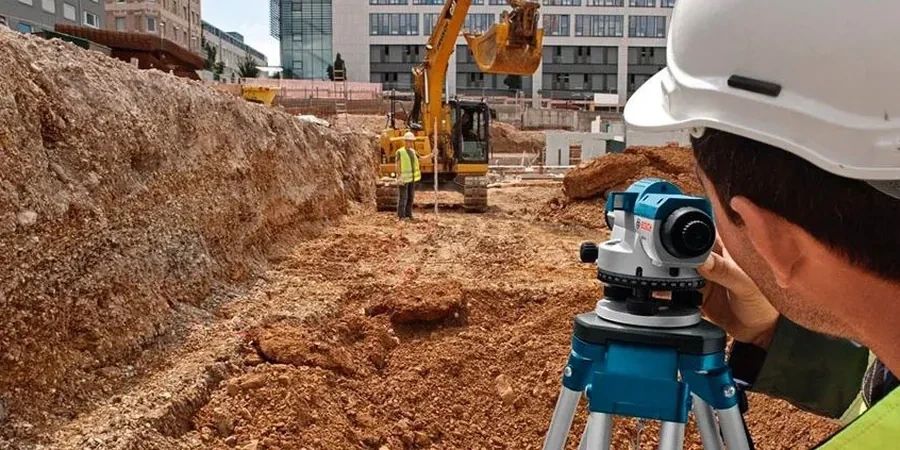

Technical reference image — San Bernardino
Site-specific factors
San Bernardino grew rapidly after the railroad arrived in the 1880s, often building on native clays without modern testing. Many older homes and commercial strips show signs of differential heave — tilted floors, cracked drywall, and jammed doors. The city lies in a region where natural clay deposits can change from low to high expansiveness within a single lot. A proper expansive soil evaluation in San Bernardino identifies these pockets before construction. We map the vertical distribution of swelling clays using continuous sampling methods. This prevents the costly mistake of designing for uniform soil conditions when the ground under one corner of the building is twice as active as the rest of the site.
One-dimensional swell test on undisturbed specimens to measure heave potential and vertical pressure. Results used directly in slab and footing design per IBC Chapter 18.
02
Atterberg Limits & Expansion Index
Plasticity index, liquid limit, and expansion index (ASTM D4829) to classify soil expansiveness. Quick screening tool for preliminary risk assessment.
03
Moisture & Suction Profile
Field measurement of in-situ moisture content and matric suction at multiple depths. Essential for modeling seasonal volume change and designing moisture barriers.
Relevant standards
ASTM D4546-21 (Standard Test Methods for One-Dimensional Swell or Collapse of Soils), ASTM D4318-17e1 (Standard Test Methods for Liquid Limit, Plastic Limit, and Plasticity Index of Soils), ASTM D4829-19 (Standard Test Method for Expansion Index of Soils), Post-Tensioning Institute (PTI) Design of Post-Tensioned Slabs-on-Ground
Quick answers
What is the difference between swelling pressure and expansion index?
Swelling pressure is the vertical stress required to prevent volume increase when a confined sample is wetted. It is measured in psf or kPa and used directly in structural design. The expansion index (ASTM D4829) is a simpler test that classifies soil as low, medium, high, or very high expansive based on a compacted specimen. Both are useful, but swelling pressure is more reliable for foundation design in San Bernardino.
How much does an expansive soil evaluation in San Bernardino cost?
For a typical residential lot with two borings and lab tests, the cost ranges between US$710 and US$1,670 depending on depth, number of swell tests, and site access. Larger commercial projects with multiple borings and extensive laboratory work can reach higher values. We provide a fixed quote after reviewing the project scope.
Can I build on expansive soil without special foundation design?
Not safely. Expansive clays in San Bernardino can heave several inches under a slab, causing structural damage. The IBC requires a geotechnical investigation that identifies expansive soils and specifies design measures such as post-tensioned slabs, deep foundations, or soil replacement. Skipping the evaluation often leads to costly repairs after the first wet season.
What time of year is best for expansive soil testing?
Late summer or early fall, when the soil is driest, gives the most conservative swell pressure values. Testing during the wet season may underestimate heave because the clay is already partially expanded. If testing during winter, we account for the current moisture content and model the worst-case dry condition using suction measurements.
