San Bernardino grew rapidly through the mid-20th century, with much of its development over the deep alluvial fans of the San Bernardino Mountains. These deposits, ranging from sandy gravels to silty clays, create variable subgrade support that directly affects slab performance. Rigid pavement design here must account for non-uniform moisture conditions and the potential for differential settlement beneath joints. Before finalizing thickness design, experienced teams typically run a resistance test on compacted subgrade to establish the design CBR, and they evaluate soil expansion potential in areas where clay lenses are present. Both factors influence slab thickness and joint spacing recommendations under ACI 325-15 guidelines.
In San Bernardino, joint spacing under 15 feet is essential to control curling stress on variable alluvial subgrades.
Approach and scope
One observation that only comes from years of local work is that San Bernardino's older residential streets often show cracking along construction joints within the first five years. The culprit is usually not the concrete mix but the subgrade: shallow clay layers that swell and shrink with seasonal rain. For rigid pavement design in San Bernardino, the key parameters are slab thickness (typically 6 to 10 inches for residential collectors), joint spacing kept under 15 feet to control curling stress, and dowel bar diameter sized per AASHTO LRFD. The team also runs plate load tests to validate the modulus of subgrade reaction (k-value) rather than relying on default tables, especially when the soil profile includes buried stream channels from the Santa Ana River floodplain.

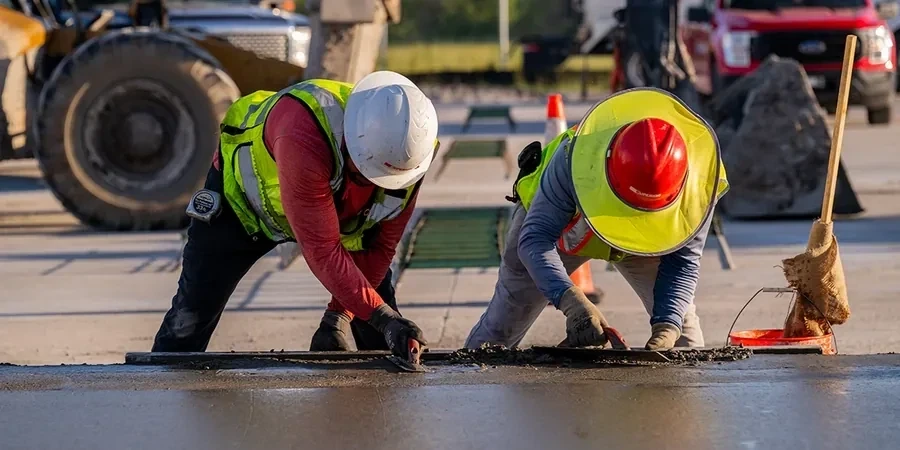

Technical reference image — San Bernardino
Site-specific factors
San Bernardino sits at an elevation of about 1,070 feet on the edge of the San Andreas fault zone, and its alluvial soils are subject to both seismic shaking and localized liquefaction in saturated loose sands. For rigid pavement design, the primary risk is loss of subgrade support under dynamic loading — a situation that can cause slab faulting and corner breaks after a moderate earthquake. The 1992 Landers and 1994 Northridge events produced documented pavement damage in the Inland Empire. Mitigation involves verifying the site class per ASCE 7, designing thickened edges at fault crossings, and ensuring adequate base drainage to prevent pumping under cyclic slab movement.
Field plate load tests (ASTM D1196) combined with laboratory CBR and resilient modulus testing to establish the design k-value for each pavement section. Reports include recommended slab thickness and joint layout per ACI 325-15.
02
Structural design and joint detailing
Full thickness design using PCA-based fatigue analysis, including stress check at slab corners and edges. Deliverables include dowel bar sizing, tie bar spacing, and contraction joint layout optimized for San Bernardino's subgrade variability.
Relevant standards
ACI 325-15 – Guide for Design of Pavement, AASHTO LRFD – Pavement Structural Design, ASTM D1196 – Nonrepetitive Static Plate Load Test, ASTM D1883 – California Bearing Ratio (CBR)
Quick answers
What is the typical slab thickness for a rigid pavement in San Bernardino?
Residential collectors usually require 6 to 8 inches of concrete, while arterial roads and industrial yards call for 8 to 12 inches. The exact thickness depends on the subgrade k-value and expected traffic loads, validated through plate load testing.
How much does rigid pavement design cost for a typical project in San Bernardino?
For a standard design package including subgrade evaluation, thickness design, and joint detailing, the range is US$1,750 to US$6,560. Larger projects with multiple pavement sections or complex drainage requirements may fall at the higher end.
Why is joint spacing critical for rigid pavement in San Bernardino?
San Bernardino's alluvial subgrades can produce non-uniform support under slabs. Joints spaced wider than 15 feet increase curling stress and mid-panel cracking risk. ACI 325-15 recommends 12 to 15 foot spacing with dowel bars to transfer load across joints without faulting.
What soil tests are needed before designing a rigid pavement?
At minimum: CBR test (ASTM D1883) for subgrade strength, plate load test (ASTM D1196) for k-value, and Atterberg limits (ASTM D4318) to identify expansive clay layers. In seismic zones like San Bernardino, a site class determination per ASCE 7 is also recommended.
