San Bernardino sits on deep alluvial fans from the San Bernardino Mountains, with soils ranging from loose sands to stiff clays. This variability poses a real challenge for retaining structures. An MSE wall relies on the soil itself as part of the structure, so understanding local gradation and compaction is critical. Before starting the reinforcement layout, we always run a compression simple test to gauge unconfined strength in cohesive layers. The city's semi-arid climate means the water table is often deep, but seasonal storms can trigger rapid saturation. That's why drainage design is as important as the reinforcement strips. In our experience, a well-designed MSE wall in San Bernardino must account for both the granular backfill and the foundation soil beneath.
An MSE wall in San Bernardino must account for both the granular backfill and the foundation soil beneath to resist seismic loads.
Approach and scope
A common mistake we see locally is assuming one reinforcement type fits all. Contractors grab a generic geogrid without checking the soil's friction angle or fines content. That shortcut leads to bulging faces or even collapse. For San Bernardino's mixed alluvial deposits, the design must match the reinforcement to the native soil. We work with metallic strips where corrosion risk is low and polymeric geogrids where flexibility helps. Each project starts with a detailed soil classification, including sieve analysis and Atterberg limits to spot swelling potential. The facing system also matters: segmental block, welded wire, or concrete panel. We follow AASHTO LRFD for internal and external stability checks. Every layer of reinforcement is spaced based on the vertical stress profile. Get those details right and the wall stands for decades.

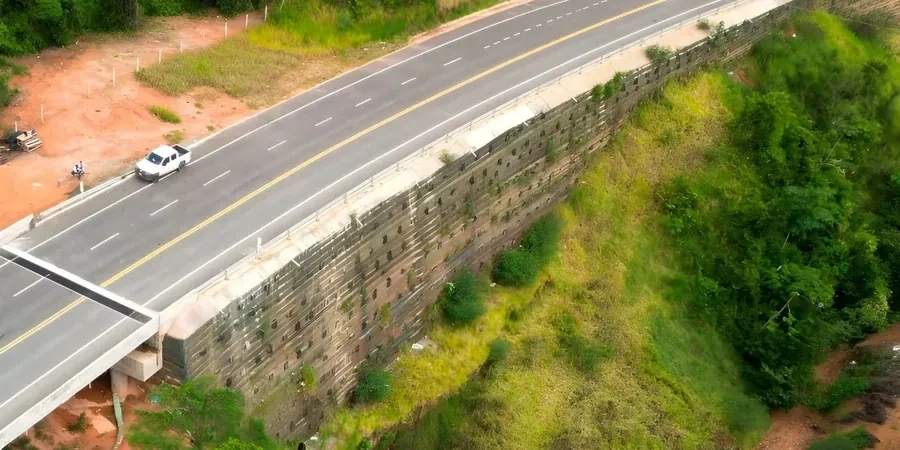

Technical reference image — San Bernardino
Site-specific factors
Compare two neighborhoods in San Bernardino: the alluvial terraces near the Santa Ana River have well-graded sands with good drainage, while the older deposits near the foothills hold clayey silts that shrink and swell. An MSE wall designed for the first site would likely fail in the second. The risk isn't just collapse — differential settlement can tilt the wall face, opening joints and allowing backfill to wash out. We've seen walls in the Del Rosa area suffer from this after heavy rain. That's why we always pair the MSE design with a permeability test at the field to confirm drainage layers work as modeled. Ignoring the local soil variation turns a stable structure into a liability.
Steel strips or polymeric geogrids per AASHTO M288
Internal Stability Factor of Safety
≥ 1.5 for static, ≥ 1.1 for seismic (IBC 2018)
Backfill Friction Angle (phi)
≥ 34° for granular, verified by triaxial test
Maximum Allowable Settlement
25 mm (1 in) differential, 50 mm total
Corrosion Rate Design Life
75–100 years with galvanized or galvanized + epoxy coating
Related technical services
01
Reinforcement Layout and Stability Analysis
We calculate reinforcement length, vertical spacing, and pullout resistance for both static and seismic loads. The analysis includes internal, external, and global stability checks per AASHTO LRFD.
02
Drainage and Backfill Specification
Proper drainage prevents hydrostatic pressure buildup behind the wall. We specify granular backfill gradation, filter fabric requirements, and weep hole or chimney drain placement based on San Bernardino's rainfall patterns.
What soil conditions in San Bernardino affect MSE wall design the most?
The city's alluvial soils vary from loose sands to clayey silts. Loose sands require densification before backfill placement, while clayey silts need careful drainage and corrosion protection for metallic reinforcement. We run compaction tests and Atterberg limits to classify the foundation soil.
How does seismic design factor into an MSE wall in San Bernardino?
San Bernardino is in a high seismic zone (Site Class D or E per ASCE 7). We apply a pseudo-static seismic coefficient of 0.2g to 0.4g depending on the fault distance. The reinforcement length increases by 20-30% compared to static design, and the facing connection must withstand cyclic loading.
What is the typical cost range for an MSE wall design project in San Bernardino?
For a complete design package including soil investigation, reinforcement layout, and construction drawings, the cost ranges between US$1,310 and US$5,070. The final price depends on wall height, soil complexity, and the number of load cases analyzed.
