In San Bernardino, the alluvial fans descending from the San Bernardino Mountains create a complex mix of gravel, sand, and silt layers that can behave very differently under load. We see this firsthand when designing foundations for the warehouses and distribution centers popping up along the I-10 corridor. The oedometer consolidation test is our go-to method for figuring out how much these variable soils will settle over time, especially where deep fill or soft clay lenses are present. Before we start any settlement analysis, we typically run a compression simple test to get a baseline on undrained strength, which helps us decide the right load increments for the consolidation ring. That sequence matters because the oedometer results directly feed into the foundation design and pavement thickness calculations for projects across the city.
Preconsolidation pressures in San Bernardino alluvium typically range from 1.0 to 2.5 kg/cm², indicating light overconsolidation from historical desiccation and minor glacial loading.
Approach and scope
The soil profile near downtown San Bernardino is noticeably different from what we find out toward the Rialto border — the older alluvium tends to be denser and less compressible, while younger deposits near the Santa Ana River floodplain can show significant consolidation potential. In our experience, the oedometer consolidation test captures three critical parameters: the compression index (Cc), the recompression index (Cr), and the preconsolidation pressure. For a recent warehouse project off Waterman Avenue, we ran twelve consolidation tests on Shelby tube samples and found preconsolidation pressures ranging from 1.2 to 2.1 kg/cm², which told us the site had been lightly overconsolidated by historical desiccation. We pair this data with a pavement evaluation when the project involves heavy truck traffic, because the subgrade settlement under repeated loading can be just as critical as the primary consolidation. The lab applies load increments per ASTM D2435, typically 24-hour steps, and we monitor the dial readings to plot the e-log-p curve.

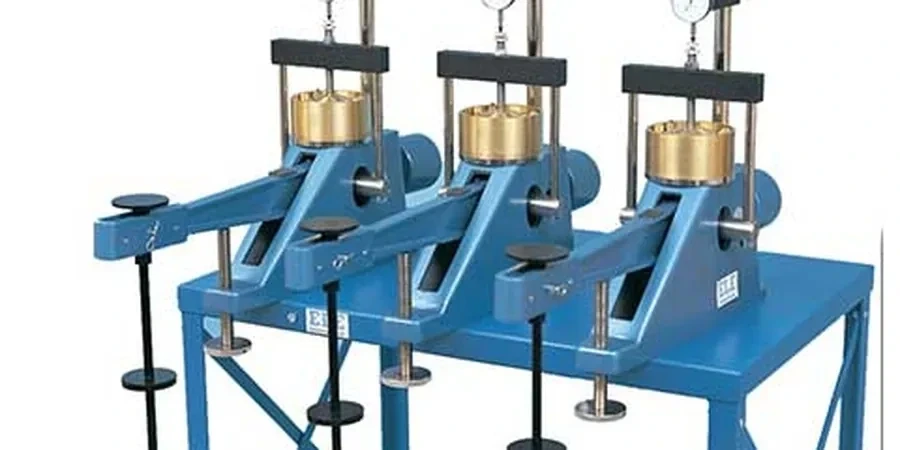

Technical reference image — San Bernardino
Site-specific factors
A three-story apartment building we reviewed near Hospitality Lane had to be redesigned after the oedometer consolidation test revealed a 4-meter-thick soft clay layer with a compression index of 0.42. The original shallow foundation design would have caused about 8 cm of total settlement, with nearly 4 cm of differential settlement across the slab. That would have cracked the floor slab, jammed the doors, and possibly damaged the utility connections. We recommended a deep foundation system with piles extending through the clay into the dense sand layer below, which reduced the expected settlement to under 1.5 cm. Without the consolidation test data, the contractor would have poured the slab and discovered the problem months later when the cracks appeared.
Standard Oedometer Consolidation Test (ASTM D2435)
Incremental loading test on undisturbed Shelby tube samples to determine compression index, recompression index, preconsolidation pressure, and coefficient of consolidation. Typical load sequence: 0.1, 0.25, 0.5, 1.0, 2.0, 4.0, and 8.0 kg/cm², with unloading steps.
02
Consolidation for Pavement Subgrade Design
Focused on secondary compression and rebound characteristics for highway and airfield pavements. We run extended load durations to estimate long-term post-construction settlement under traffic loads, especially relevant for San Bernardino's logistics hubs.
Relevant standards
ASTM D2435-11: Standard Test Methods for One-Dimensional Consolidation Properties of Soils, ASTM D2487-17: Standard Practice for Classification of Soils for Engineering Purposes, IBC 2021 Chapter 18: Soils and Foundations, ASCE 7-22: Minimum Design Loads and Associated Criteria for Buildings
Quick answers
How does the oedometer consolidation test differ from a simple settlement calculation?
The oedometer test measures actual soil compressibility parameters — Cc, Cr, and preconsolidation pressure — from undisturbed samples. A simple calculation uses assumed values that may not reflect San Bernardino's variable alluvium. The test gives you site-specific numbers that reduce guesswork and liability.
What is the typical turnaround time for oedometer consolidation test results in San Bernardino?
A standard test with one loading cycle takes about 7 to 10 business days from sample receipt, depending on the number of load increments. Each load step requires 24 hours of monitoring. For urgent projects, we can run a reduced-load schedule with 4 to 6 increments, cutting turnaround to 5 days.
How much does an oedometer consolidation test cost in San Bernardino?
The cost typically ranges between US$210 and US$490 per sample, depending on the number of load increments and whether rebound/reload cycles are included. Bulk testing for large developments may qualify for a volume discount. Contact us for a quote tailored to your project scope.
