We roll into San Bernardino job sites with a full monitoring kit — inclinometers, piezometers, and settlement cells — all calibrated to the specific conditions of the Inland Empire. Our crew sets up real-time data loggers before the first bucket of soil is moved. The city sits on a mix of alluvial fans from the San Bernardino Mountains and deeper sedimentary layers, which means lateral ground movement and water table fluctuations are common. For projects near the Santa Ana River corridor, we also run a masw vs30 survey to map shear-wave velocity profiles, which helps define site class for seismic design under ASCE 7. Every monitoring point is tied to a local benchmark, not an assumed datum, so you get reliable displacement data from day one.
Real-time inclinometer readings in San Bernardino alluvial soils can detect lateral movement as small as 0.5 mm before it becomes a serviceability issue.
Approach and scope
San Bernardino's post-war boom saw rapid development across its valley floor, but much of that expansion happened without thorough subsurface investigation. Today, we see the consequences: differential settlement in older strip malls, cracked pavement along Kendall Drive, and retaining wall failures near the foothills. The city's soil profile includes expansive clays from the ancient Lake Manix deposits and loose sandy layers that can compact unevenly. That is why geotechnical excavation monitoring here must track both vertical and horizontal movement. We combine tiltmeters with automated data loggers, and before excavation begins we typically run a placa de carga test to verify bearing capacity at the proposed foundation level. This baseline prevents surprises when the cut reaches five or six meters deep. The monitoring intervals tighten once excavation passes the water table, which in some areas sits only three meters below grade.

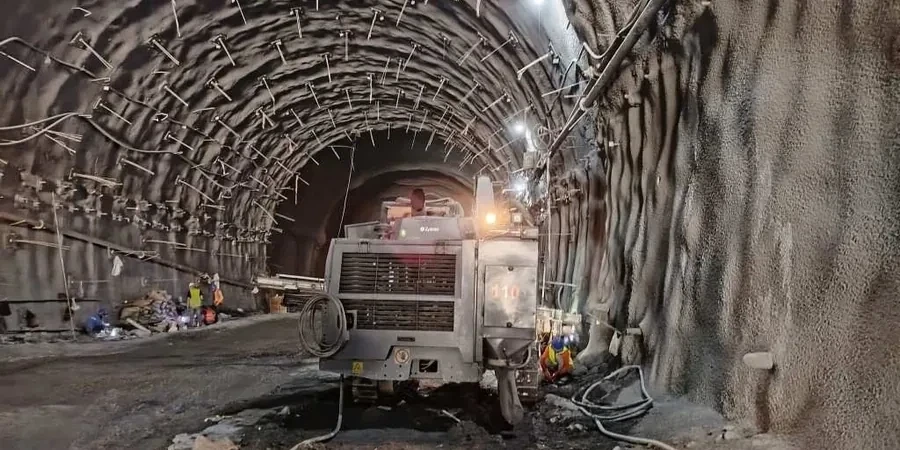

Technical reference image — San Bernardino
Site-specific factors
Compare a shallow excavation in the downtown district near E Street versus a deep cut near the base of the San Bernardino Mountains. Downtown, you hit stiff clay and sand layers with moderate groundwater at 4 m. Up near the foothills, you encounter cobbles and boulders in a loose matrix, plus a perched water table that fluctuates with seasonal rain. The risk in the foothills is sudden slope failure along a weak bedding plane, while downtown the main concern is differential settlement from dewatering. A contractor who skips geotechnical excavation monitoring in these variable conditions might face a trench collapse or adjacent structure damage. We have documented cases where daily inclinometer readings caught movement trends that visual inspections missed entirely, saving weeks of rework.
Continuous lateral displacement tracking using in-place inclinometers with automated data transmission. We install 70 mm PVC casing to depths of 20 m and log readings every 15 minutes during active excavation.
02
Settlement and Heave Monitoring
Precision optical surveys with automated total stations and settlement plates. We establish a network of monitoring points around the excavation perimeter and track vertical movement to ±0.2 mm accuracy.
03
Groundwater Level Monitoring
Vibrating wire piezometers installed in dedicated boreholes to track pore pressure changes during dewatering. Data is transmitted via cellular modem to a secure web portal accessible by the project team.
Relevant standards
ASCE 7-22 (Chapters 11–12 for seismic site class), IBC 2021 (Section 1804 for excavation support), ASTM D6230-21 (Inclinometer calibration and testing)
Quick answers
What is geotechnical excavation monitoring and why is it necessary in San Bernardino?
It is the systematic measurement of ground movement, pore pressure, and structural response during excavation. In San Bernardino, the mix of alluvial soils, expansive clays, and a shallow water table makes it essential to detect lateral displacement or settlement before they reach critical levels. It protects adjacent structures and ensures compliance with IBC 2021 and ASCE 7.
How much does geotechnical excavation monitoring cost in San Bernardino?
The typical cost ranges from US$840 to US$2,200 depending on the number of monitoring points, depth of instrumentation, and duration of monitoring. A basic setup with two inclinometers and three settlement points for a 4-week project usually falls at the lower end. Deeper excavations with automated piezometers and remote data logging sit at the higher end.
What instruments do you use for excavation monitoring?
We use in-place inclinometers for lateral movement, vibrating wire piezometers for pore pressure, and automated total stations or settlement plates for vertical displacement. All instruments are calibrated to ASTM D6230 and linked to a data logger that transmits readings via cellular modem to a web portal.
How often should monitoring data be collected during excavation?
During active excavation, we recommend a reading interval of 15 to 30 minutes for inclinometers and hourly for piezometers. Once excavation reaches final depth and support systems are installed, the interval can be relaxed to daily or weekly readings for the duration of the project.
Can monitoring prevent excavation failure in San Bernardino's soils?
Monitoring cannot prevent failure by itself, but it provides early warning of developing conditions such as accelerating lateral movement or rising pore pressure. In San Bernardino's variable alluvial soils, early detection of a 2 mm per day trend gives the contractor time to install additional shoring or adjust dewatering rates before a collapse occurs.
