A common mistake we see is assuming a shallow footing system works uniformly across San Bernardino's alluvial fan deposits. The city sits on a mix of old river terraces, debris-flow materials, and clayey silt layers that vary laterally within meters. Without a proper raft/mat foundation design that accounts for differential settlement and the high groundwater table near the Santa Ana River, contractors end up with cracked slabs and costly retrofits. We integrate the ensayo SPT data to define bearing capacity and the consolidation parameters needed for a safe mat thickness.
In San Bernardino, ignoring liquefaction in mat foundation design can lead to differential settlements exceeding 2 inches within 50 years of service.
Approach and scope
San Bernardino's post-war boom pushed development onto the alluvial plain between the San Bernardino Mountains and the San Andreas Fault zone. This urban expansion created a legacy of variable fill layers and undocumented compaction. For raft/mat foundation design, we analyze site-specific soil stiffness through plate load tests and laboratory triaxial results. The city's seismic setting under ASCE 7 Site Class D or E demands careful evaluation of liquefaction potential and cyclic softening. We also run the following checks for every mat design:
Uplift resistance under high groundwater scenarios (typically 3–6 ft below grade)
Edge-bearing capacity for perimeter columns on sloped lots
Settlement time rates for deep clay strata exceeding 40 ft thickness
When clay layers are problematic, we cross-check with suelos expansivos data to avoid heave-related failures.

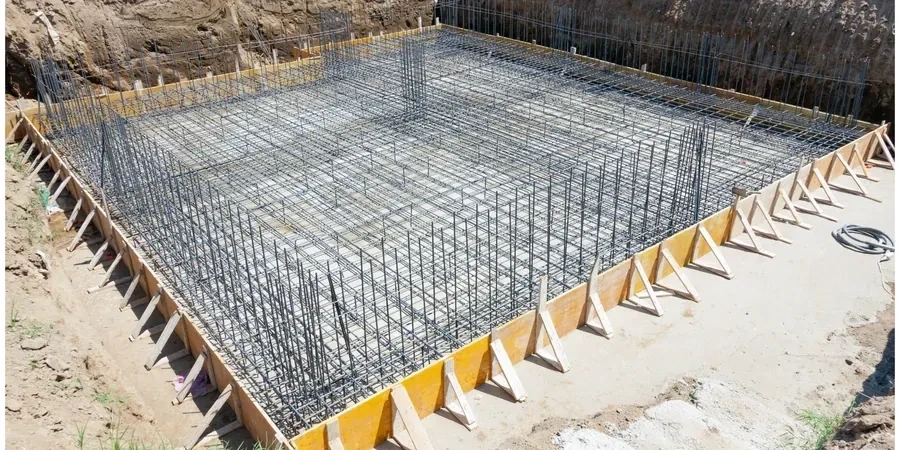

Technical reference image — San Bernardino
Site-specific factors
The contrast between the dry alluvial fans near the foothills and the saturated clays along the Santa Ana River corridor creates a dual hazard for raft/mat foundation design. During wet El Niño cycles, clay layers swell and reduce shear strength, while dry periods cause shrinkage cracking. Add the San Andreas fault proximity — a magnitude 7.8 event would generate peak ground accelerations over 0.6g. Our designs incorporate post-tensioning and thickened edges to handle these cyclic stress reversals. We also verify drainage provisions to prevent hydrostatic uplift beneath the mat.
Boreholes with SPT and Shelby tube sampling to define soil layering, groundwater, and strength parameters for mat design.
02
Mat Foundation Structural Design
Reinforced concrete mat thickness, reinforcement layout, and post-tensioning tendon profiles per ACI 318 and IBC.
03
Settlement & Uplift Analysis
Time-rate consolidation analysis for clay strata plus hydrostatic uplift checks using long-term groundwater records.
04
Liquefaction Hazard Mitigation
Evaluation of cyclic softening and inclusion of gravel drains or deep soil mixing beneath the mat when required.
Relevant standards
ASCE 7-22 (seismic & wind loads), IBC 2021 (Chapter 18: Soils & Foundations), ACI 318-19 (reinforced concrete design for deep foundations), ASTM D1196-21 (plate load test for modulus of subgrade reaction)
Quick answers
What is the typical cost range for a raft/mat foundation design in San Bernardino?
A full geotechnical investigation plus structural design for a residential or light commercial mat runs between US$940 and US$4,080, depending on site complexity, number of borings, and laboratory testing volume.
How does the San Andreas fault affect mat foundation design in San Bernardino?
The fault generates high seismic accelerations (0.6g+). Our mat designs include thicker edges, post-tensioning, and liquefaction-mitigation layers like stone columns or deep soil mixing to limit differential settlement.
When is a raft foundation better than spread footings in San Bernardino?
A mat is preferable when soil bearing capacity is low (under 2,500 psf), groundwater is shallow, or the building has heavy column loads. It also helps on sites with variable fill or collapsible soils common near old river channels.
What soil tests are required before designing a mat foundation in San Bernardino?
Minimum requirements: SPT borings every 75 ft, undisturbed samples for consolidation and triaxial tests, and a groundwater monitoring well. For seismic sites, we also run cyclic triaxial or resonant column tests to evaluate modulus reduction curves.
