Downtown San Bernardino sits on alluvial fans from the San Bernardino Mountains, with dense sands and gravels near the surface, while the Lytle Creek Wash area shows looser silty sands and occasional clay lenses. That contrast matters when designing foundations for mid-rise buildings or bridge piers. The Ménard pressuremeter test (PMT) gives us direct measurement of the soil's deformation modulus (EM) and limit pressure (pl) at depth, which is far more reliable than correlations from blow counts in variable alluvium. Before we run a PMT, we often pair it with a dilatometer test to cross-check lateral stress conditions, and with CPT when we need continuous stratigraphic profiling across a parcel.
In San Bernardino's alluvial fans, the PMT's EM and pl values reduce foundation design uncertainty by up to 40% compared to SPT correlations alone.
Approach and scope
A common mistake we see locally is relying solely on SPT N-values to estimate settlement for shallow foundations on the older terrace deposits near the 215 corridor. The PMT captures the non-linear stress-strain response that SPT cannot, especially in gravelly sands where hammer energy losses skew N-values. Our procedure follows ASTM D4719-20 and uses a Menard-type probe with three cells. We inflate the probe in 10 to 15 equal-volume increments, recording pressure every 15 seconds until the limit pressure is reached. The raw curve yields three key parameters: the pressiometric modulus EM, the limit pressure pl, and the creep pressure pf. These feed directly into bearing capacity and settlement calculations per IBC 2021. In San Bernardino, we calibrate each test against local plate load tests to refine the rheological coefficient α for the alluvial soils.

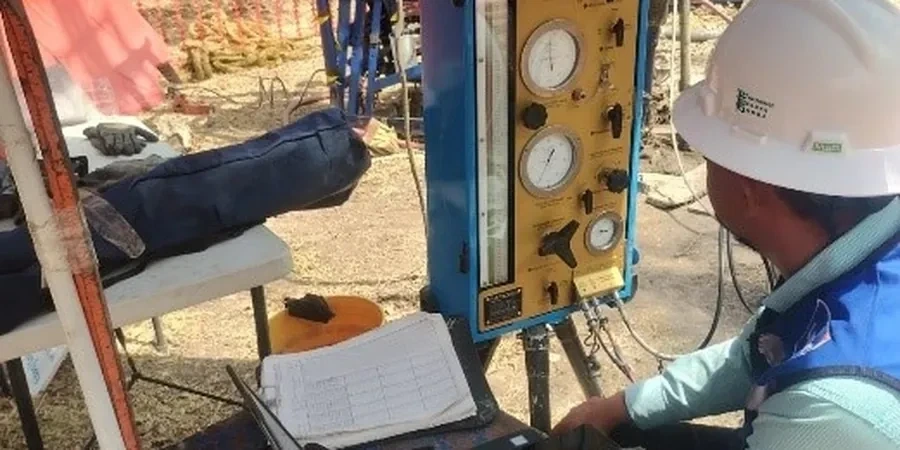

Technical reference image — San Bernardino
Site-specific factors
San Bernardino's post-war expansion pushed development onto the former floodplains of Warm Creek and the Santa Ana River, where loose granular soils and shallow groundwater dominate. Without an in-situ stiffness measurement like the PMT, engineers risk underestimating settlement in silty sands with fines content above 15%, which behave differently under cyclic loading from the San Jacinto fault zone. The 1992 Landers earthquake sequence showed that liquefaction triggering in these deposits is strongly influenced by lateral stress coefficient K0, which the PMT measures directly. We always recommend a minimum of three PMT profiles per site when building on these historical floodplain soils.
EM (modulus), pl (limit pressure), pf (creep pressure)
Test depth range
1.5 m to 30 m (standard rods)
Rheological coefficient α
Calibrated per local alluvial deposits
Standard
ASTM D4719-20 / NF P94-110
