A common mistake we see in San Bernardino construction projects is relying solely on visual-manual soil classification for foundation design. Builders assume that because the clay looks stiff, it will support the load. But without an unconfined compression test (UCS), you have no way to quantify the undrained shear strength. We have seen cases where a compacted fill passed a pocket penetrometer test on site, only to fail the unconfined compression test in the lab, revealing only half the expected strength. That gap between field estimates and lab values leads to costly redesigns. Before pouring concrete, we recommend pairing the UCS with an ensayo SPT to correlate blow counts with actual strength, and a muestreo inalterado to preserve the natural moisture content.
A UCS test on San Bernardino fat clay revealed only half the strength estimated by pocket penetrometer, preventing a foundation redesign.
Approach and scope
For a recent 10-story mixed-use project near the San Bernardino Metrolink station, we ran UCS on Shelby tube samples from the upper 15 feet. The soil was a fat clay (CH) with visible slickensides. Our procedure follows ASTM D2166: we trim the sample to a 2.8:1 height-to-diameter ratio, load it at 0.5% strain per minute, and record axial stress until failure or 15% strain. The test gives us the unconfined compressive strength (qu) directly, from which we calculate the undrained shear strength (su = qu/2). In San Bernardino, where alluvial clays interbed with sand lenses, the UCS complements a corte directo on the granular layers and an ensayo triaxial for drained parameters. Typical qu values in the area range from 0.5 to 3.0 kgf/cm² for the younger alluvium.

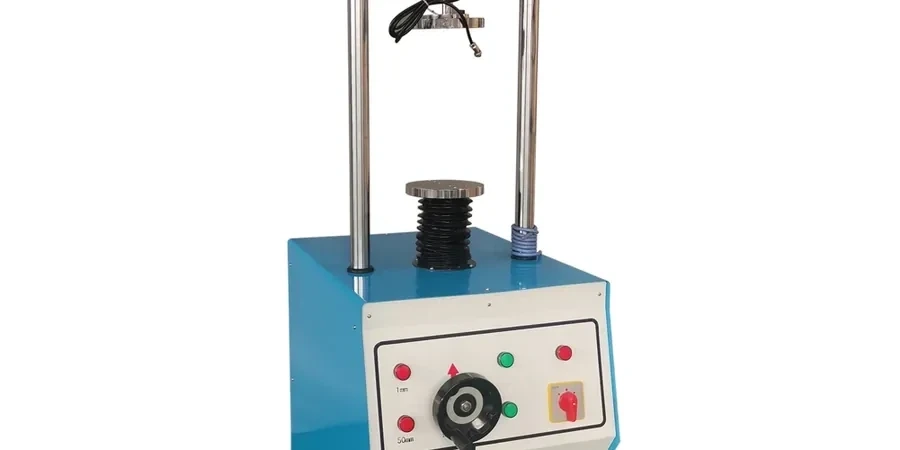

Technical reference image — San Bernardino
Site-specific factors
San Bernardino sits in a semi-arid climate with hot summers and mild winters, but the summer monsoon can bring sudden downpours. When the clay dries out between seasons, it develops desiccation cracks that drastically reduce the unconfined compressive strength. If you sample after a wet period and test immediately, you might overestimate the dry-season strength. Conversely, testing a completely dry sample gives unrealistically high qu values. The risk is that foundation loads calculated from a single UCS test may not represent the full seasonal cycle. We always run UCS on samples at in-situ moisture content and note the water content at test time, so the engineer can apply a reduction factor for long-term exposure.
For cohesive soils retrieved from thin-walled tubes, we perform the unconfined compression test per ASTM D2166. Includes sample trimming, moisture content determination, and a stress-strain curve report. Ideal for residential and low-rise commercial projects in San Bernardino.
02
UCS on Block or Bag Samples
When tube sampling is not feasible, we test trimmed specimens from block or bag samples. The test follows the same ASTM D2166 procedure, but we note the disturbance level. Suitable for shallow foundations, slope stability checks, and pavement subgrade evaluation in San Bernardino.
Relevant standards
ASTM D2166-16 (Standard Test Method for Unconfined Compressive Strength of Cohesive Soil), ASTM D1587-15 (Standard Practice for Thin-Walled Tube Sampling of Fine-Grained Soils), IBC 2021 Chapter 18 (Soils and Foundations)
Quick answers
How much does an unconfined compression test cost in San Bernardino?
For a standard UCS test on a Shelby tube sample, expect to pay between US$380 and US$570. The exact price depends on sample condition, number of specimens, and whether you need quick turnaround. Contact us for a firm quote based on your project volume.
What is the difference between UCS and triaxial test?
The UCS test applies vertical load with zero confining pressure, so it only measures undrained shear strength on cohesive soils. The triaxial test applies a confining pressure, allowing you to get drained or undrained strength parameters under simulated burial depth. For San Bernardino clays, UCS is faster and cheaper, but triaxial is needed when you require effective stress parameters for deep foundations or embankment stability.
How long does it take to get UCS results in San Bernardino?
A standard UCS test takes 3 to 5 business days from sample receipt to report. If you need faster turnaround, we offer a 2-day expedited service for an additional fee. The test itself only takes 10 to 20 minutes of loading time, but sample trimming, moisture content, and report preparation require the rest of the time.
Can UCS be performed on disturbed samples?
ASTM D2166 requires undisturbed or remolded specimens. Disturbed samples (like bag samples of loose soil) cannot be tested for in-situ strength because the structure is already broken. However, we can compact the disturbed soil to a target density and moisture content, then run a UCS on the remolded specimen to evaluate strength after compaction. This is common for fill quality control in San Bernardino.
